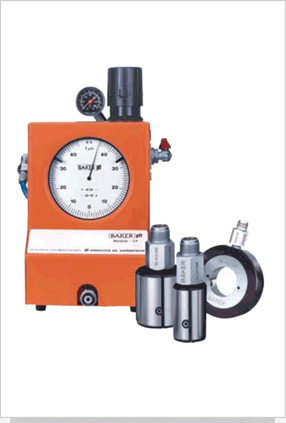

 We offer two air gauging systems - Module 1A and Module 2A- giving the most economical solution to
your inspection needs on the shop floor.
High pressure system - High speed of response and self cleaning of gauging area ensures accurate
reading of size,taper and ovality at a time.
System Pressure Check Gauge - provides a constant check on the system pressure i.e 3 bars (45 psi),
regulated by a high precision regulator built in to the unit.
Each gauge carries a calibration certificate giving actual values. Module-1A: For Dia 6mm to 200mm.
Air Plug Gauge/Air Ring Gauge with jet ID size 2.07 mm Module-2A: For Dia 1.5mm to 6mm Air Plug
Gauge/Air Ring Gauge with jet ID size 0.6 mm
Air consumption 46 LPM./'/ Minimum line pressure required 4.5 bars (67 psi)./'/ Non-contact Gauging -
Long life due to minimal frictional wear./'/ Two Setting Masters - Ensures correct magnification of
reading at all times.4
Minimum line pressure required 4.5 bars (67 psi).
Non-contact Gauging - Long life due to minimal frictional wear.
Two Setting Masters - Ensures correct magnification of reading at all times. |
