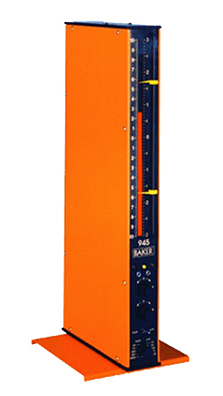

• 254mm/10 Inch tall analogue RED LED bargraph display with 100 segments.
  • 2 position bargraph intensity selection.
  • 5 Metric and 5 Inch ranges. With Tolerance markers as well as Tolerance lamps. Can be banked for Multi-gauging application.
Technical Data Sheet
Metric Ranges Resolution Inch Ranges Resolutions
±10, ±30, ±100 and ±1000microns 0.2, 1, 2, 10 and 20microns ±0.0003, ±0.001, ±0.003, ±0.01 and ±0.03inch 0.001inch
