• Rigid metallic case and bezel.
  • Highly accurate worm mechanism.
  • Each gauge carries a calibration certificate giving actual values.

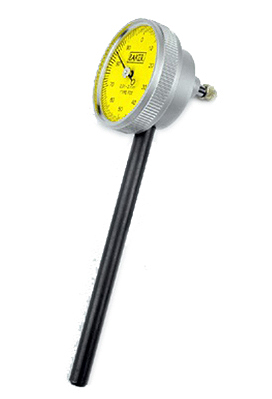

  • Gauge suitable for difficult inspection locations as gauging plunger is at right angle to the dial.
  • For the American market, inch gauges conform to ASME B89.1.10M-2001.
Technical Data Sheet
Bezel dia Type Reading Range Graduation
38mm F01 0.01mm 2.0mm 0-50-0
38mm F02 0.01mm 2.0mm 0-100
38mm F51 0.001inch 0.1inch 0-50-0
38mm F52 0.001inch 0.1inch 0-100
