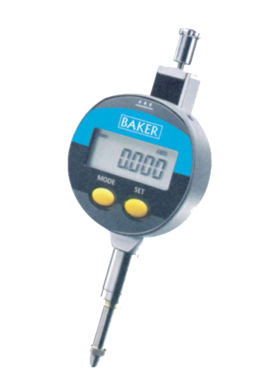

• Same gauge can be set to 0.01 mm / 0.0005 inch, besides the standard 0.001 mm / 0.00005 inch.
  • The Electronic Module is completely sealed against dust and water / coolants / lubricating oils directed towards it from all sides (IP 65).
  • Each gauge carries a calibration certificate giving actual values.
  • Swiss technology.
  • Accurate Inductive measuring system.
  • Inch / Metric capability.
  • RS232 output.
  • Hardened and ground stainless steel plunger and stem.
Technical Data Sheet
Type Reading Range Accuracy Repeatability Measuring Force
MD001 0.001 mm / 0.00005 in 0-12.5 mm (0-0.5 in.) 0.005 mm / 0.0002 in ±0.002 mm / 0.0001 in. (± 2s ) 0.5-0.9 N
