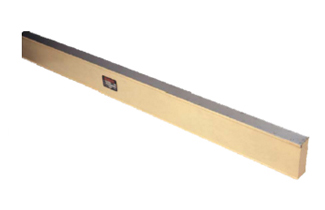

Very useful for erections, alignments and other purposes where very high accuracy is not required.

Main body is made out of extruded Aluminium section. Both top and bottom working surfaces are reinforced with steel strip.

Size in mm (L x W x H) Straightness Accuracy In µm
1000 x 50 x 115 20
1500 x 50 x 115 25
2000 x 50 x 115 30
2500 x 50 x 115 40
3000 x 50 x 115 50
3500 x 50 x 115 60
4000 x 50 x 115 70
5000 x 50 x 115 80
6000 x 50 x 115 90
