• Auto reversal.
  • Also available 1mm dia Tangusten Carbide Ball Anvil, Hight Gauge Adapter, 4mm Dia. spigots and Universal Clamp.
  • Supplied with calibration certificate.
  • Fitted with Jewels and Swiss Miniature self aligning Ball Bearing.
  • Fitted with 2mm dia. Tangusten Carbide Ball Anvil and 8mm dia. Spigots.

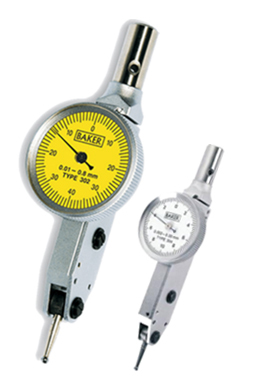

Technical Data Sheet
Supplied with 2mm/.08 inch tungsten carbide ball stylus and 8mm/3/8 inch spigot assembly with full set of accessories
Bezel dia Type Reading Range Graduation
28mm 302 0.01mm 0.8mm 0-40-0
28mm 304 0.002mm 0.2mm 0-10-0
28mm 301 0.0005inch 0.03inch 0-15-0
28mm 303 0.0001inch 0.008inch 0-4-0
Supplied with 2mm/.08 inch tungsten carbide ball stylus and 8mm/3/8 inch spigot assembly only
Bezel dia Type Reading Range Graduation
28mm 302A 304A 301A 303A
28mm 0.01mm 0.002mm 0.0005inch 0.0001inch
28mm 0.8mm 0.2mm 0.03inch 0.008inch
28mm 0-40-0 0-10-0 0-15-0 0-4-0
