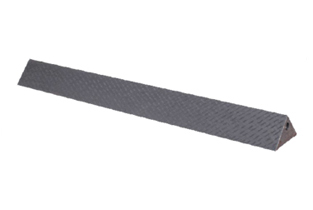

Stress Relieved Hand Scraped Surfaces. Provided with lifting handles on both ends.

Made Generally as per IS: 8823-1978. Made from good quality close grained with high Density Alloyed Cast Iron Castings Conforming to Grade FG-220 of IS: 210.

Length in mm Approx. Width in mm Flatness accuracy in µm
250 45 3
500 60 4
600 60 5
750 80 6
1000 100 8
1250 110 13
1500 130 13
2000 160 16
