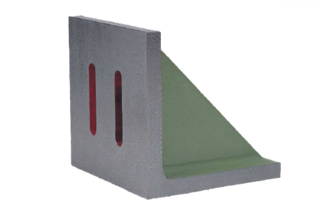

Stress Relieved Hand Scraped Surfaces. Webbed & Slotted.

Made Generally as per IS: 2554-1971. Made from good quality close grained with high Density Alloyed Cast Iron Castings Conforming to Grade FG-220 of IS: 210.

Size in mm (L X B X H) Flatness In µm Squareness In µm Parallelism In µm
125 X 75 X 100 5 10 13
175 X 100 X 125 5 13 15
250 X 150 X 175 8 15 18
350 X 200 X 250 8 18 20
450 X 300 X 350 10 18 20
600 X 400 X 450 10 20 23

Other sizes on request.

Size other than IS Flatness In µm Squareness In µm Parallelism In µm
150 X 150 X 150 5 13 15
200 X 200 X 200 8 15 18
250 X 250 X 250 8 15 18
300 X 300 X 300 8 18 20
